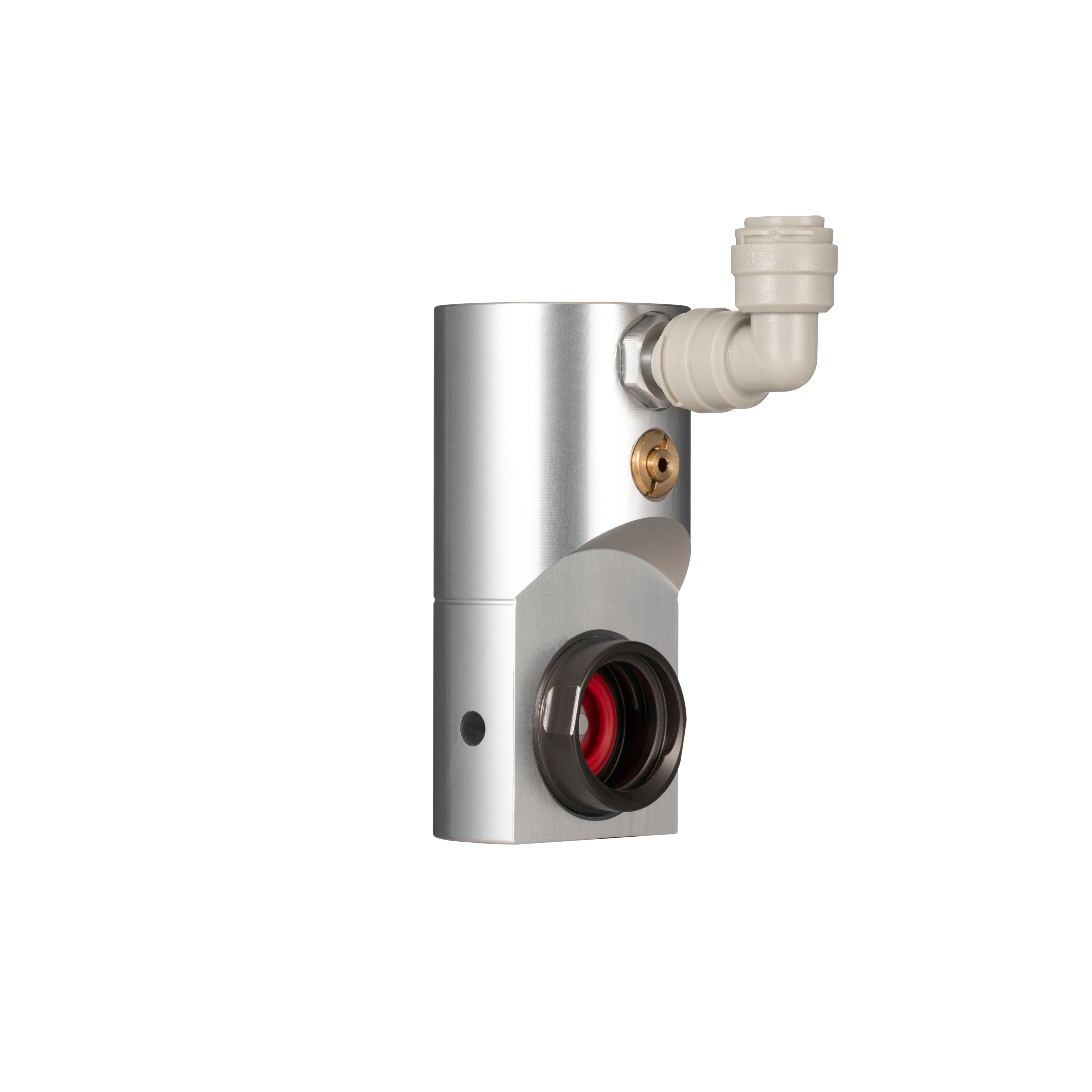

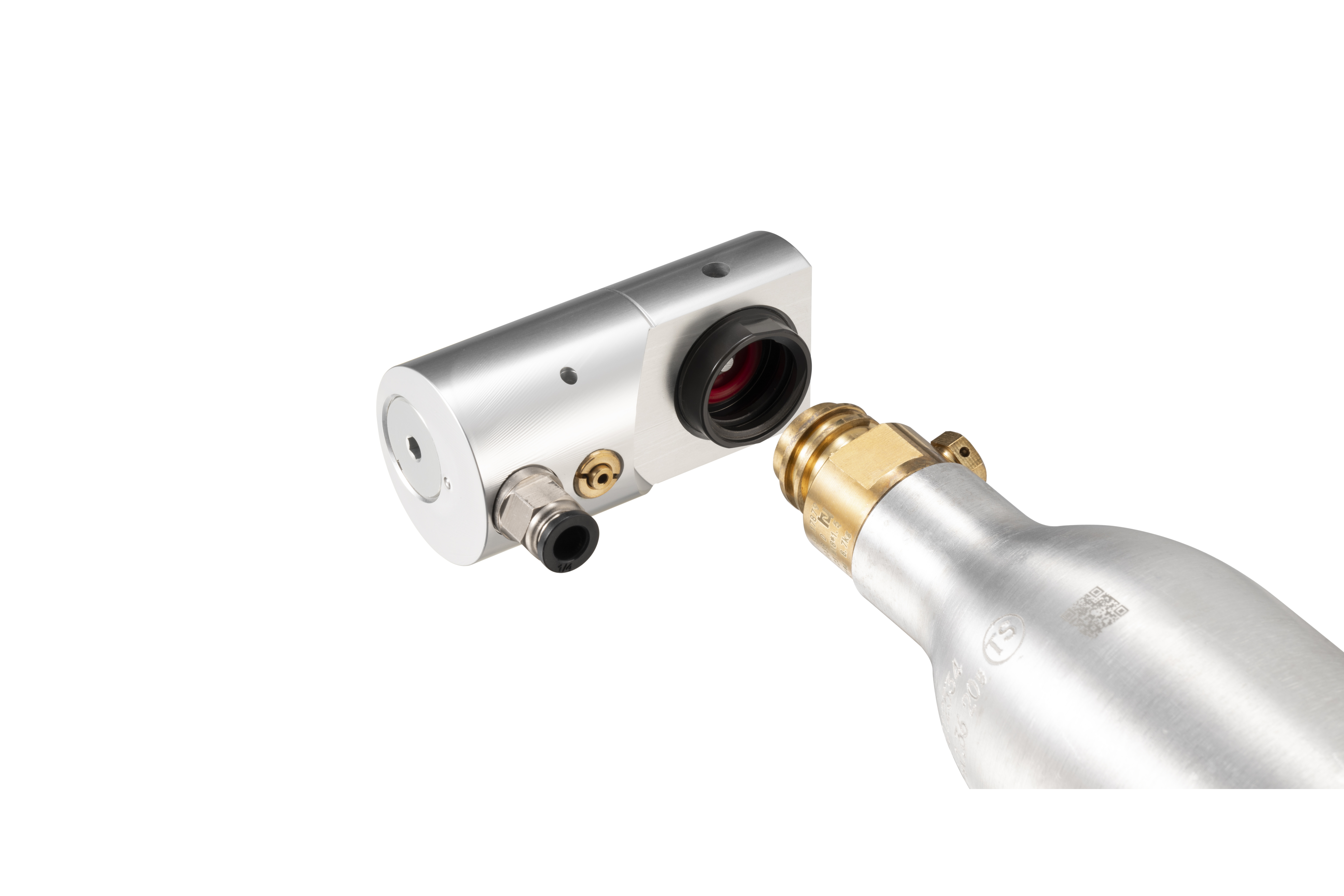

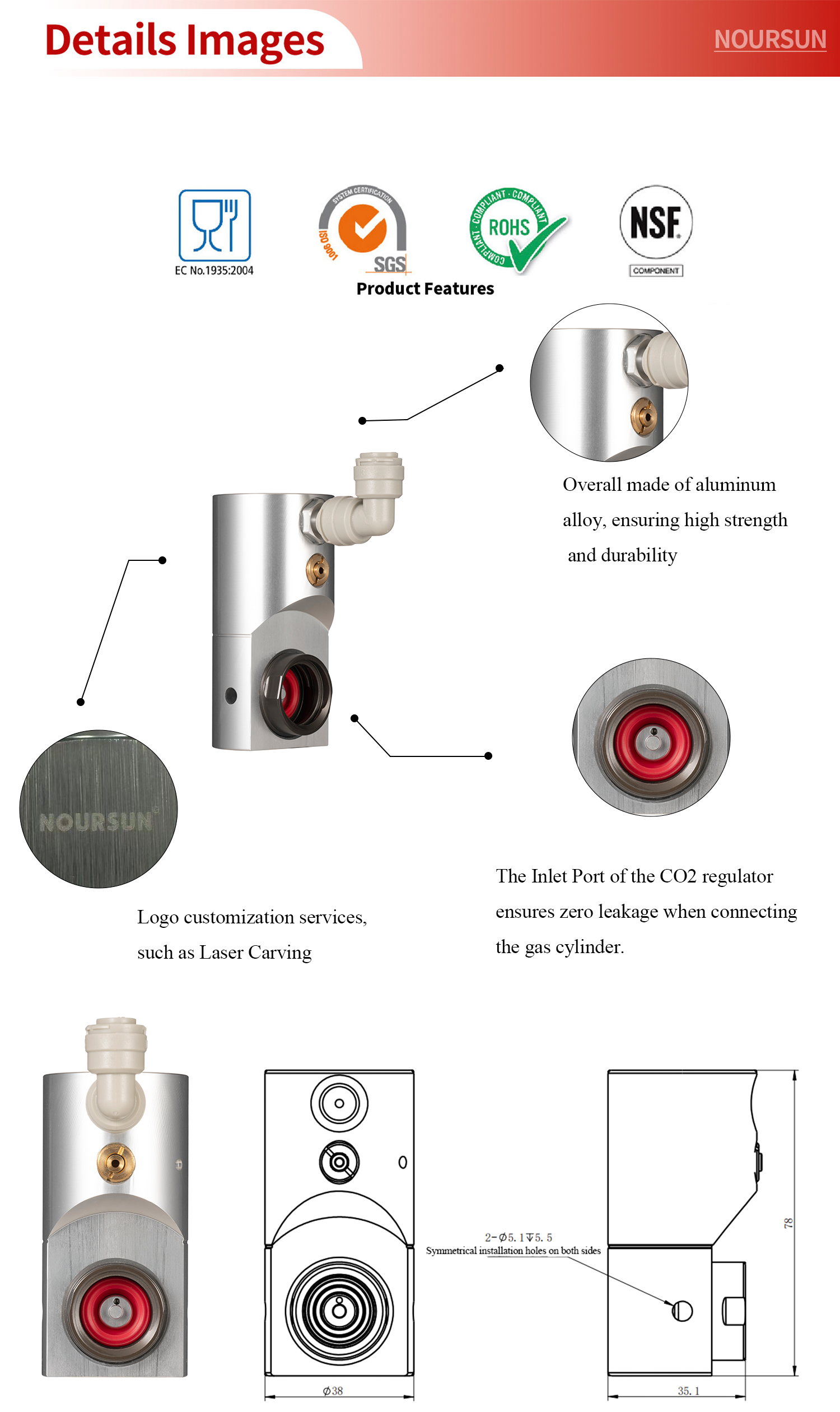

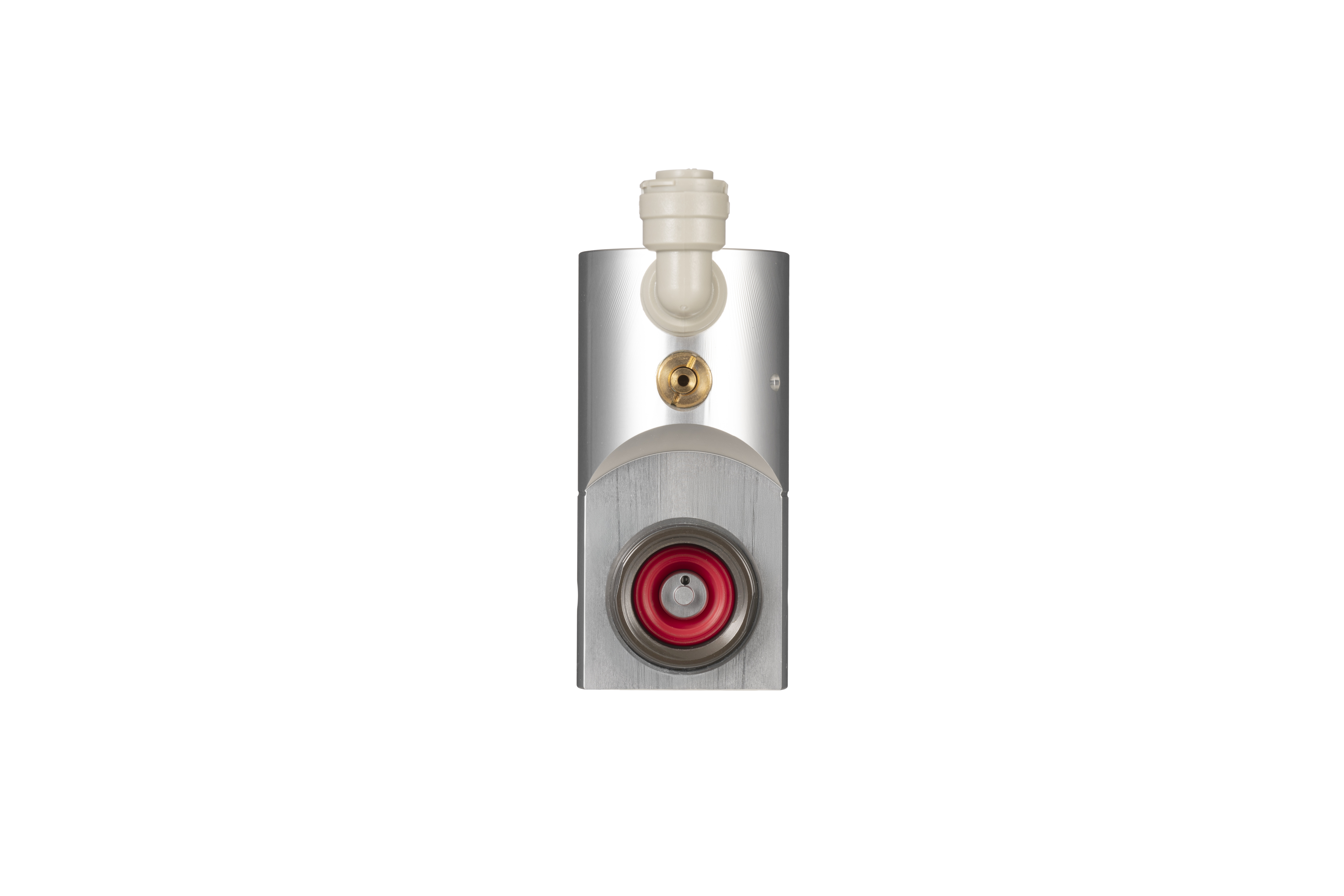

The RP13 pressure regulator is a new model developed based on the RP12. It is suitable for carbonated sparkling water machines and is installed inside the water machine. For customers with strict requirements for the air outlet direction or installation bracket position, this product is a suitable choice.
The RP13 pressure relief mechanism reduces the height of the pressure regulator, saving space for the sparkling water machine. The different types of inlet port are designed to meet the connection requirements of different types of soda CO2 cylinders, and ensure zero leakage during cylinder connection, thereby achieving the highest gas utilization rate.
| Description | Pre-pressure set pressure sparkling water pressure regulator |
| Medium | CO2 |
| Operating Temperature | -5℃ ~ 43℃ |
| Pre-set Output Pressure | 0.35Mpa-0.55Mpa |
| Output Pressure Accuracy | ±0.03MPa |
| Max. working pressure | 12Mpa |
| Pressure Rating | 30Mpa |
| Applicable Gas Cartridges | Beverage CO2 Cylinders (EN, ASME, AS) |
| Relief mechanism (LP side) | Built-in pressure relief valve |
| Inlet | TR21×4, φ21-6ACME-2G, G1/2, M22*2.5 |
| Outlet | G1/8 |
| Mounting Method | Side M5.1 mounting hole (optional) |
| Net Weight | 204g |

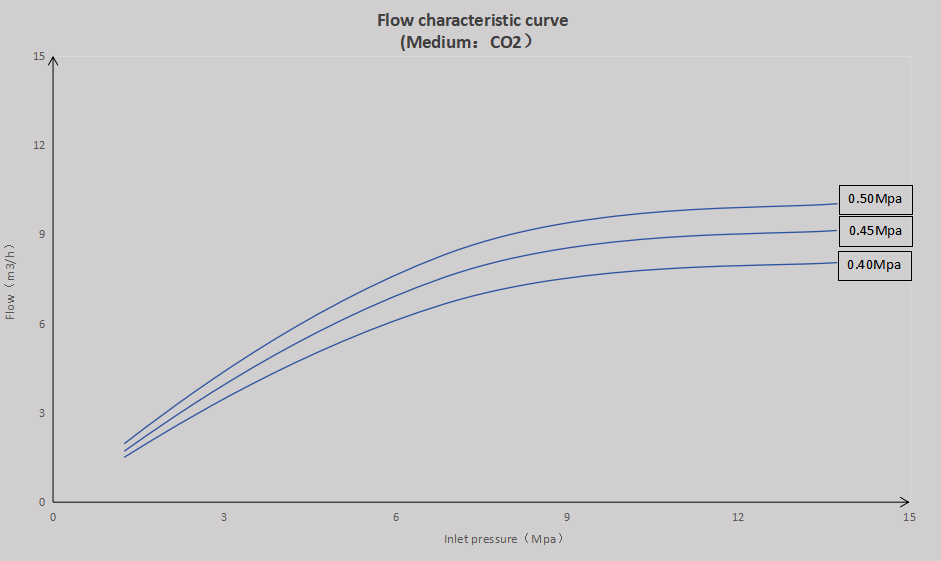

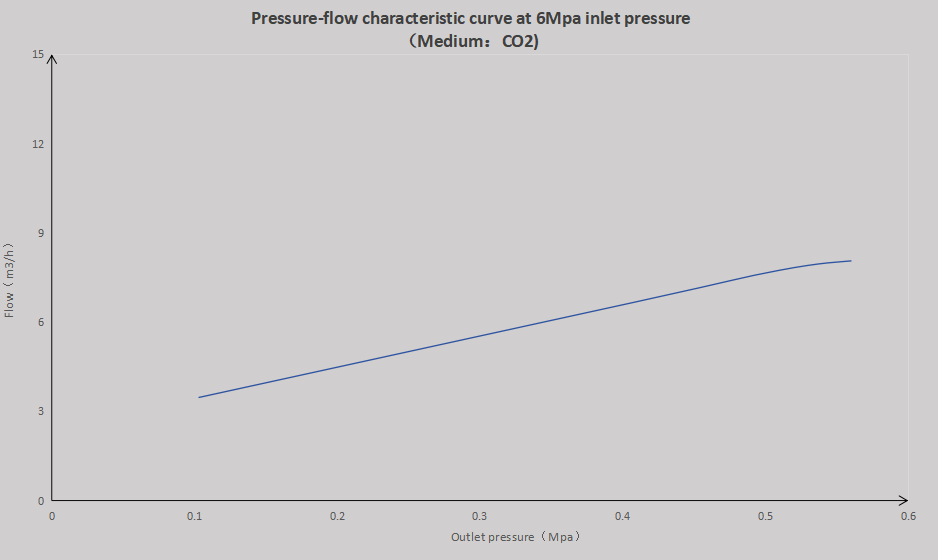

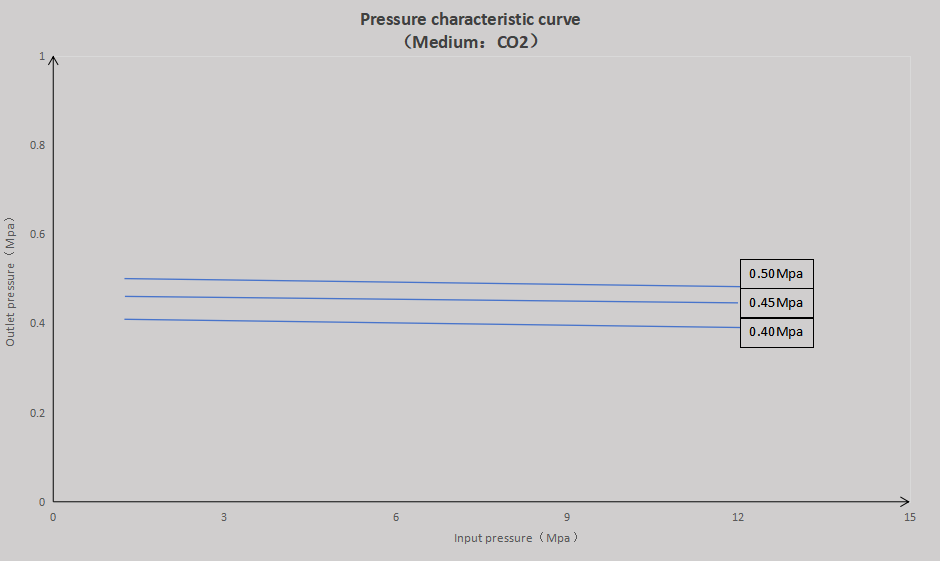

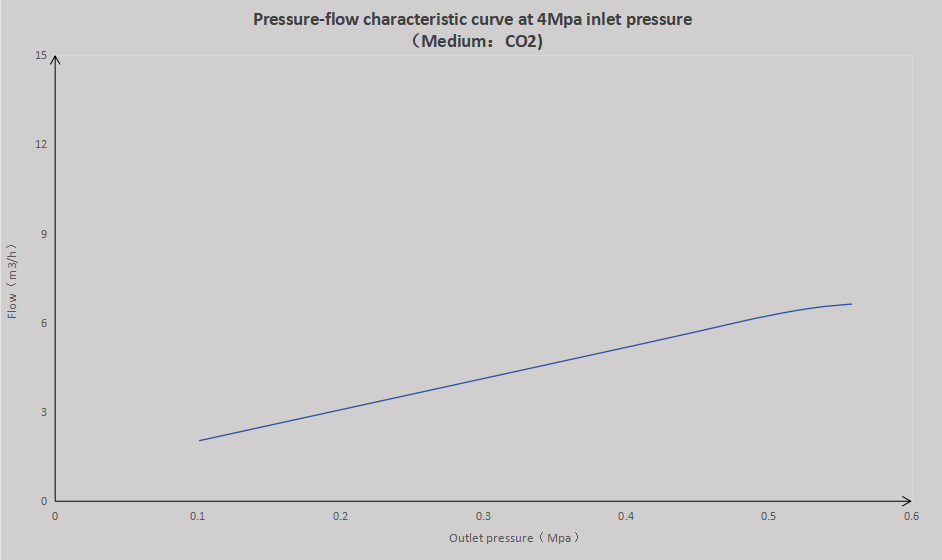

Pressure-flow characteristic curve
