Product Description

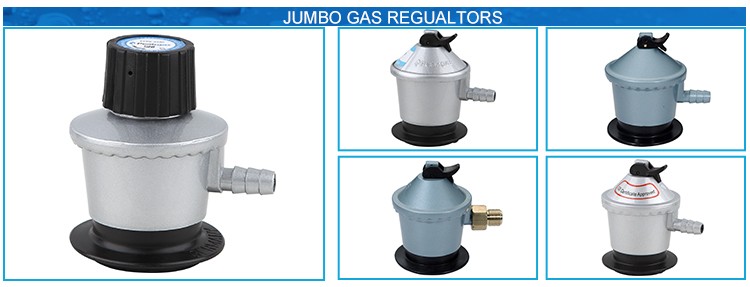

The Jumbo Regulator in connection with the cylinder valve reduces the high gas pressure in the cylinder to the low service pressure. The double stage design ensures an excellent regulator performance and characteristic. The regulator can be equipped with a pressure relief valve in the low pressure stage, opening at a nominal pressure of 150 mbar.
The body and cover of this regulator form a sealed unit after assembly in order to prevent any external interference which may affect the regulating mechanism.
The regulator can be equipped with a flow limiter which cuts off the gas flow automatically at approx 1500 l air/hr. (under normal cylinder pressure) in case of ruptured gas tubing or the gas tubing is pulled off. After cut-off the gas escape is limited to maximum 35 l air/hr.
No tools are required to connect the regulator to the valve.
Materials and Standards
The Jumbo Regulator is made of a zinc die casting (body and cover) and other corrosion resistant and LPG-proof materials such as brass, stainless steel and acetal resin.
The rubber materials used are developed and produced according to the requirements of EN 549 as well as in accordance with stringent specifications.
Quality Standards
The quality-control system carries an ISO 9001 certificate and is continually assessed by the Notified Body.
Capacity
Rated for inlet pressure of between 0,3 and 16 bar the regulator has a capacity of 1,5 kg gas/hr.
Packaging
The Jumbo Regulator comes packed separately in a folding box. The folding boxes are packed in cardboard boxes.
Frequently Asked Questions
What is the function of the Jumbo Regulator?
It reduces the high gas pressure inside the cylinder to a stable, low service pressure. Its double-stage design ensures optimal regulator performance and stability.
Does this regulator require tools for installation?
No tools are required to connect the Jumbo Regulator to the cylinder valve, allowing for a quick and tool-free setup.
What materials are used to construct the Jumbo Regulator?
It features a robust zinc die-cast body and cover, along with other corrosion-resistant and LPG-proof materials such as brass, stainless steel, and acetal resin.
What happens if the gas tubing is accidentally ruptured or pulled off?
The regulator can be equipped with a flow limiter that automatically cuts off the gas flow at approximately 1500 l air/hr. Under normal cylinder pressure, restricting the escape to a maximum of 35 l air/hr.
What are the pressure rating and capacity of this regulator?
It is rated for inlet pressures ranging between 0.3 and 16 bar, offering a capacity of 1.5 kg of gas per hour.
Does the regulator meet recognized quality standards?
Yes. The quality-control system is ISO 9001 certified and continually assessed. Furthermore, the rubber materials are developed and produced according to EN 549 specifications.
