Basic Specifications
Model NO.
HHT-9074
Exhaust
≥17(m3/min)
Noise
41-50dB
Venting
Ducted
Installation
Wall Mounted
Style
European Style
Certification
CE, CB, SASO, GS
Colour
Black
Suction Power
1000m3/h
Motor
Pure Copper Motor
Warranty
5 Years
Switch
Touch Control
Wave Sensor
With
Heat Clean
With
Voice Control
With
Size
600 / 700 / 900 mm
Certification
CE / CB / ETL
Filter
Aluminum
Transport Package
Carton
Specification
900mm
Origin
China
HS Code
841460
Production Capacity
20000/Year
Packaging & Delivery
Package Size
950.00cm * 550.00cm * 580.00cm
Package Gross Weight
23.000kg
Product Overview

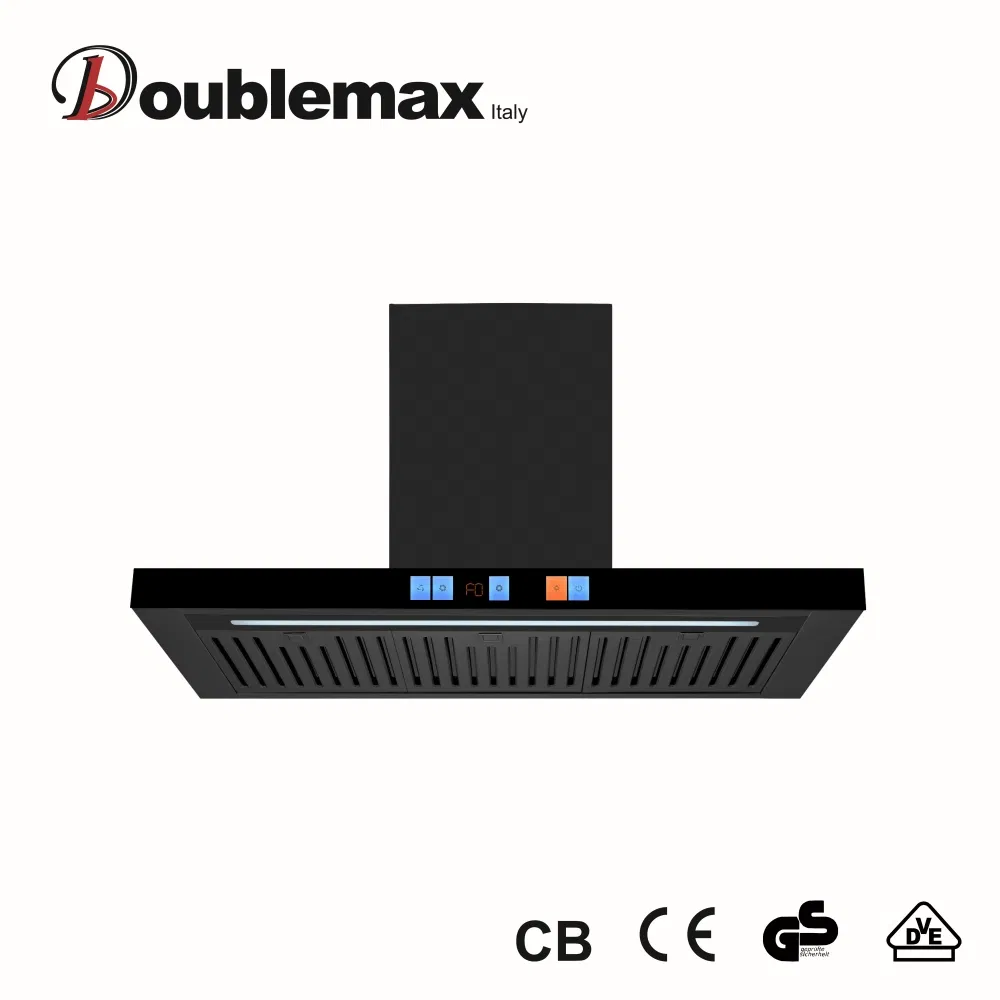

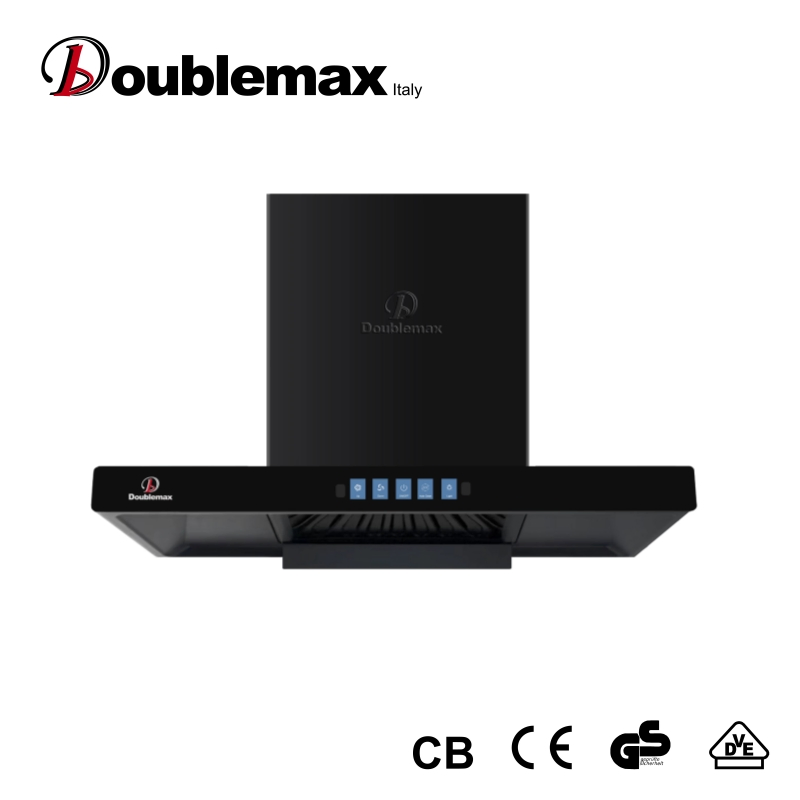

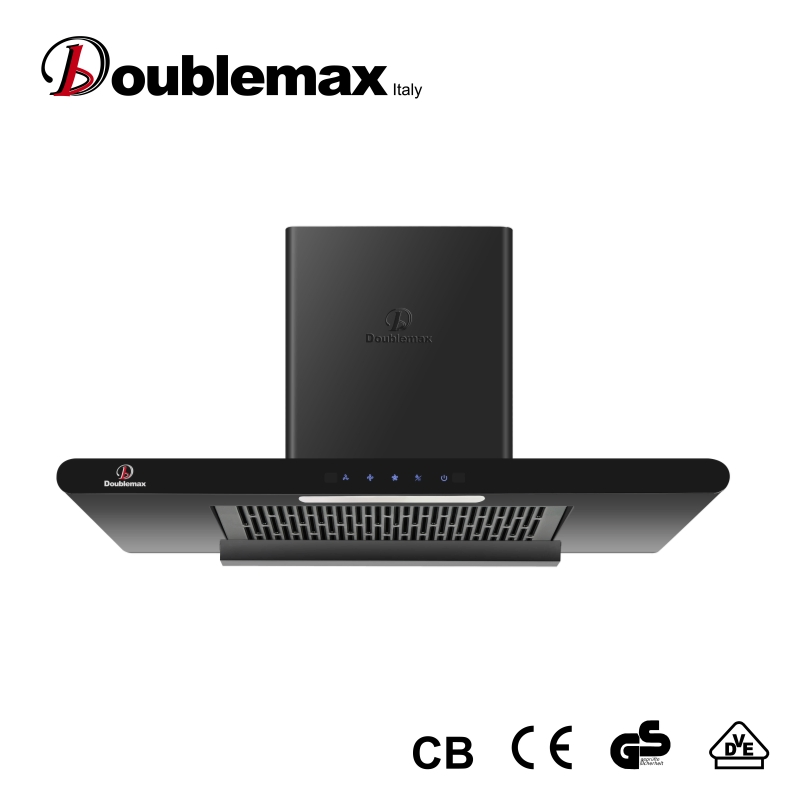

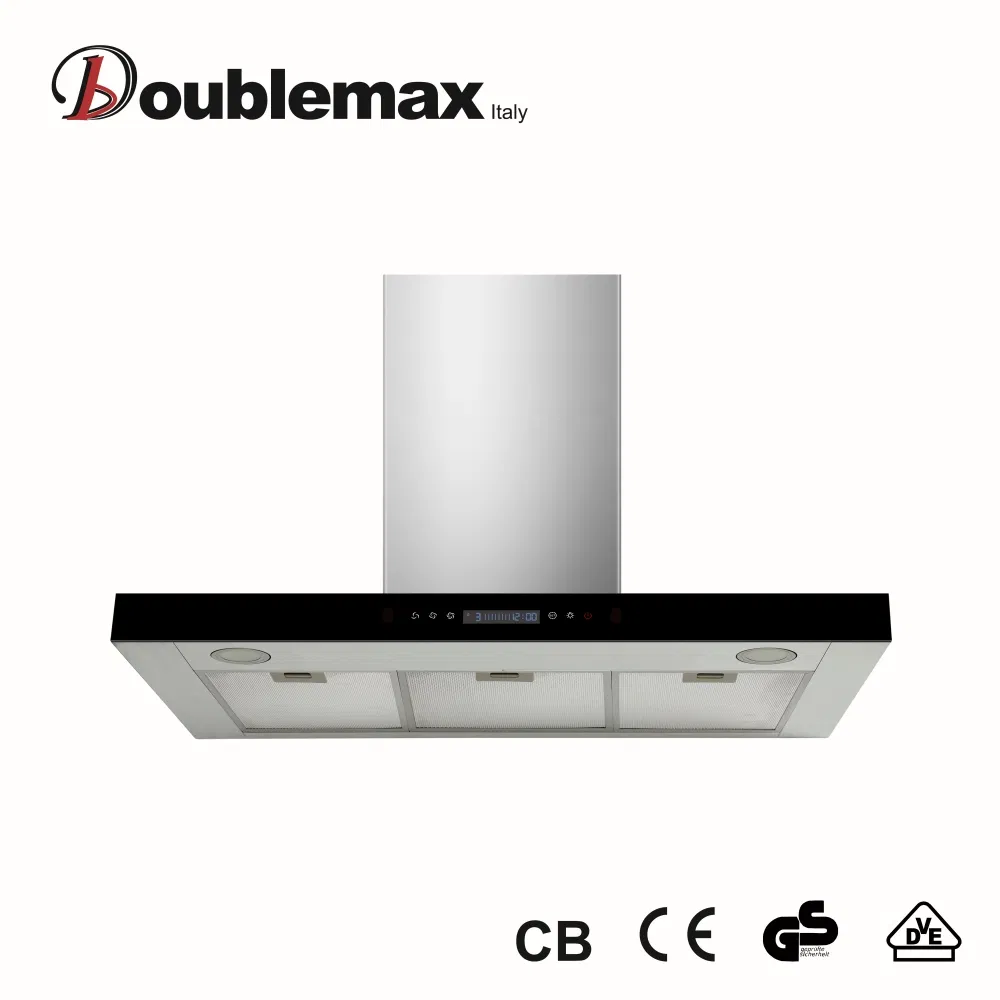

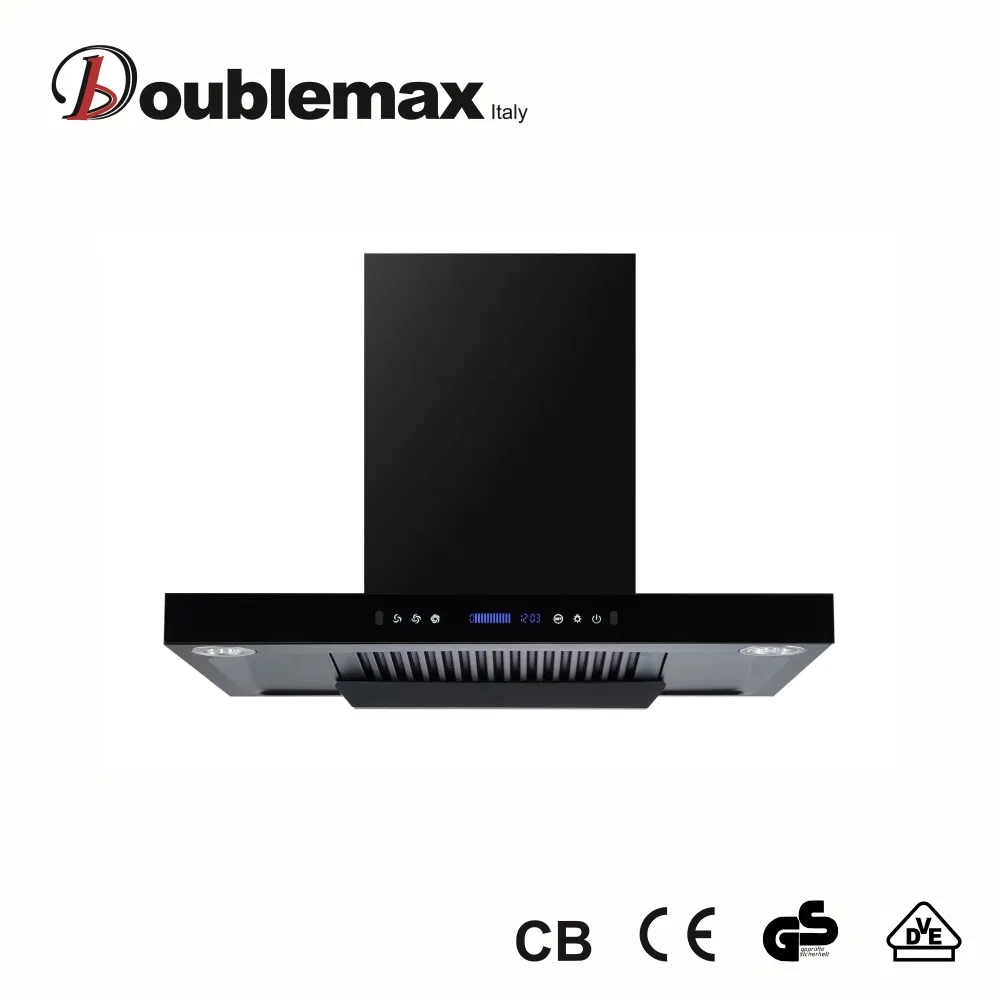

T-Shape Home Cooker Mounted Large Suction Electric Household Range Hood
Range Hood Features
| Product Type |
Control Type |
Fan Speed |
Grease Filter(s) |
Lamp Type |
| Range hood |
Touch / Voice / Gesture |
3 Speeds |
1 * SS |
1 * 3W LED |
| Max Noise Level (dBA) |
Illumination Power (W) |
Max Wind Pressure (Pa) |
Max Extraction Rate (m³/h) |
Motor Rating (W) |
| ≤57 |
2 × 1.5 |
≥280 |
1200 |
1200 |
| Smoke Sensor |
Heat Clean |
Remote Control |
Bluetooth Control |
Ducting Pipe Diameter (mm) |
| Optional |
Optional |
Optional |
N/A |
180 |
- Full sealed 32# copper motor at 1600m³/hr airflow with a high-quality 0.6 metal body.
- Pure white safety glass with 2 x 40cm telescopic chimney ducts.
- 3-speed sensor touch control, voice control, and gesture control operation.
- Durable stainless steel grease filters.
- Equipped with 1 x 3W LED lamps for clear illumination.
- Product Dimensions: 900 × 460 × 670 mm.
- Features a large, intuitive LCD display screen.
- Smart body sensor integration.
Technical & Structural Design
Design Phase 1: Low-Noise Motor Housing
The motor housing design utilizes Archimedean spiral and hydrodynamics theory to improve wind pressure and flow volume while significantly lowering noise levels:
- Noise reduction rate is improved by 13.5% at the equivalent wind volume.
- Air flow is improved by 21.1% under the equivalent noise constraints.
- Wind pressure is boosted by 17.8% under matching noise parameters.

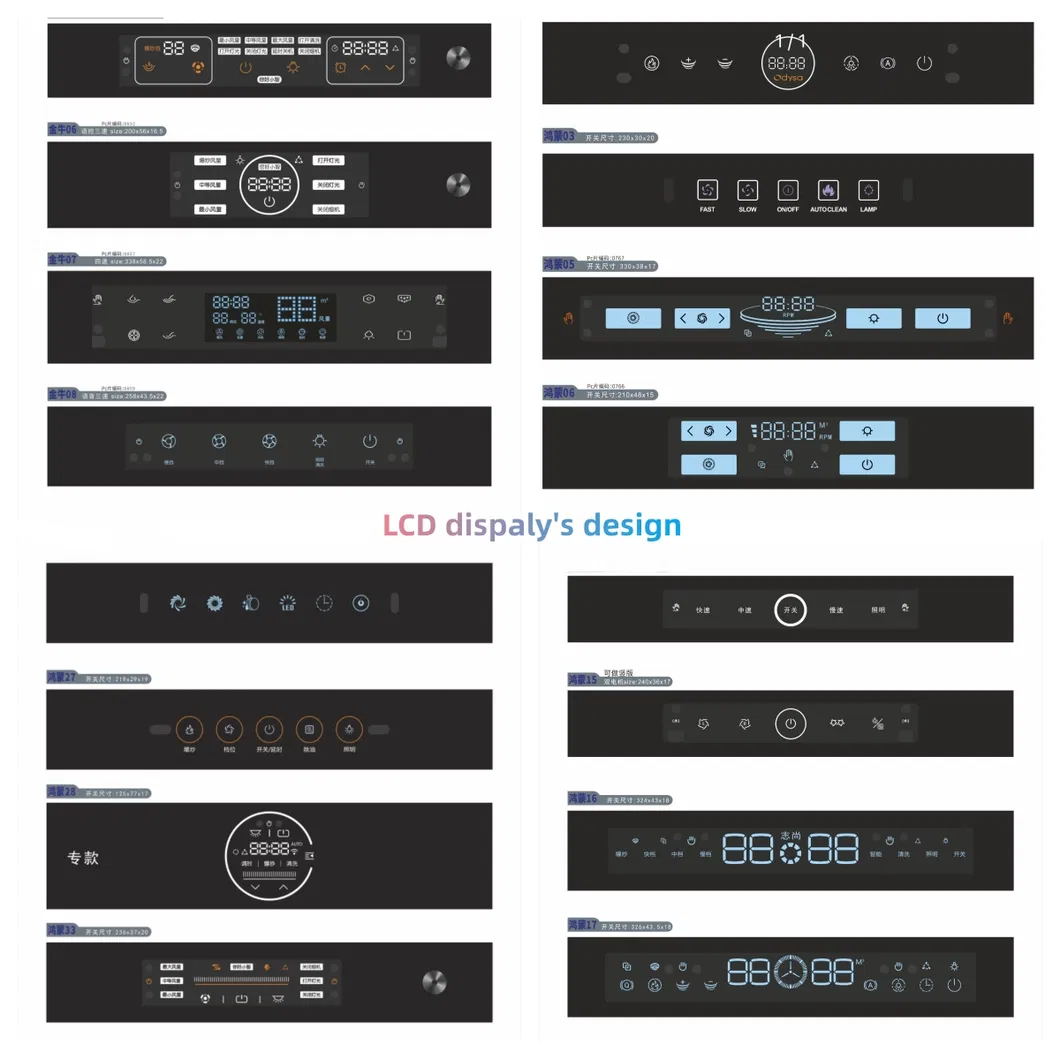

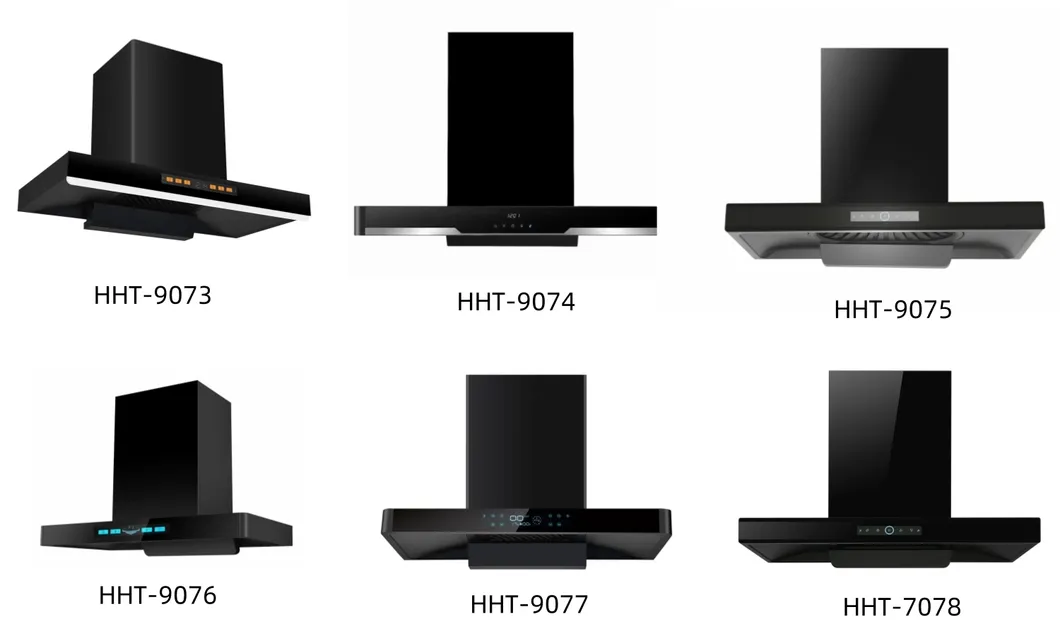

- Multiple LCD display design options are available to choose from.
Design Phase 2: Steady Operation & Cleanliness
- The aligned central axis of the impellor and motor guarantees highly steady, low-vibration operation.
- Engineered with a double inlets motor housing layout.
- Features an organic silicon painted surface that is highly heat-resistant and anti-corrosive.
- Equipped with an integrated heat cleaning function, making it easy to keep the wind wheel clean.

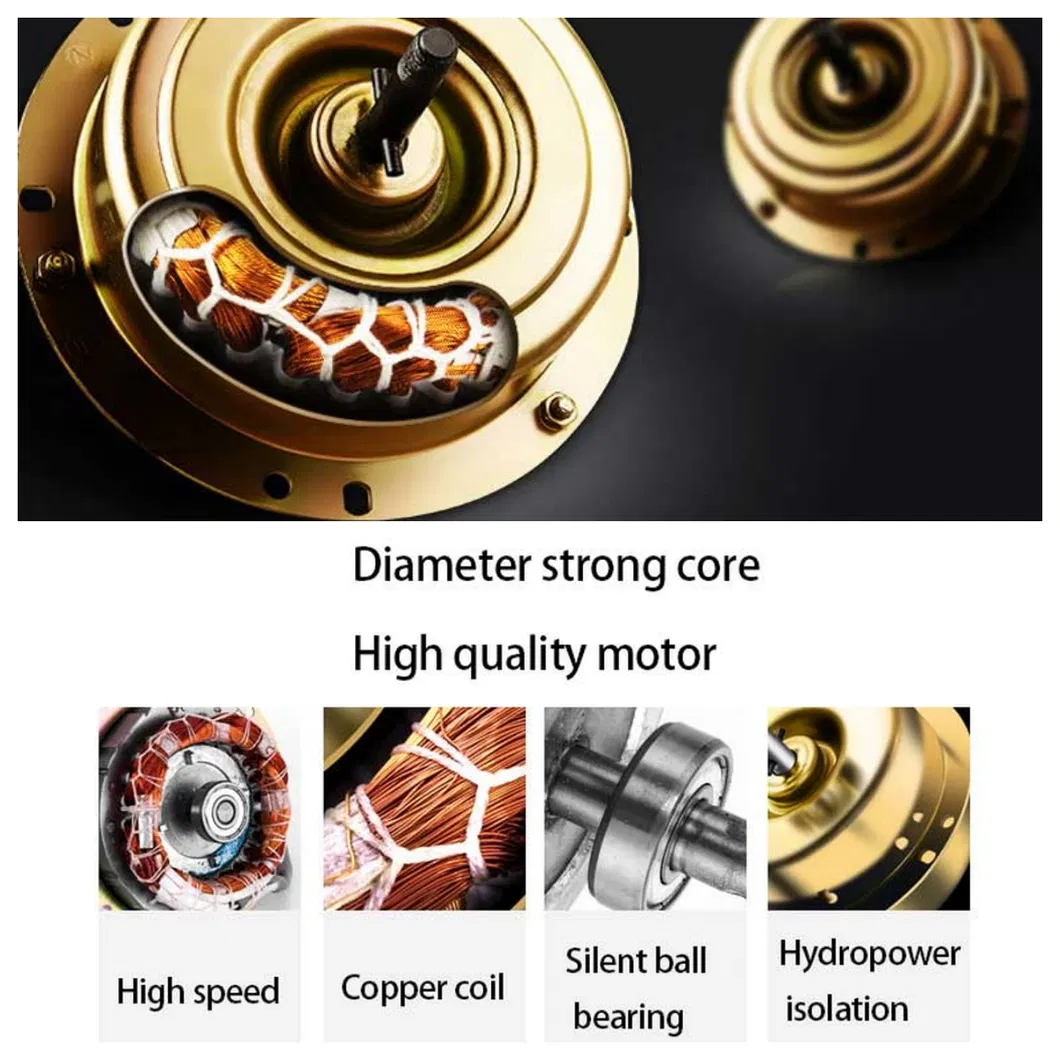

Design Phase 3: High-Performance Motor Options
Motors are available in two structures: Model A (totally-enclosed type) and Model B (open type), featuring ball bearing assemblies and 28-35 high-grade copper coils:
- Wear-resistant, anti-overheating design with an expected lifespan exceeding 100,000 operation hours.
- Safety: Optimized low temperature rise restricted to less than 30K.
- Large Air Delivery: Peak suction power can reach up to 1600 m³/h.
- Wide Voltage Adaptation: Maintains consistent output power from 160V to 270V, operating on frequencies from 45Hz to 60Hz.
- Environment-friendly: Consumes up to 50% less energy than standard motors with reduced copper wire usage on advanced BLDC configurations.
- High Efficiency: Active motor efficiency approaches 70%, saving 50% energy at high speeds and 80-90% at low speeds.

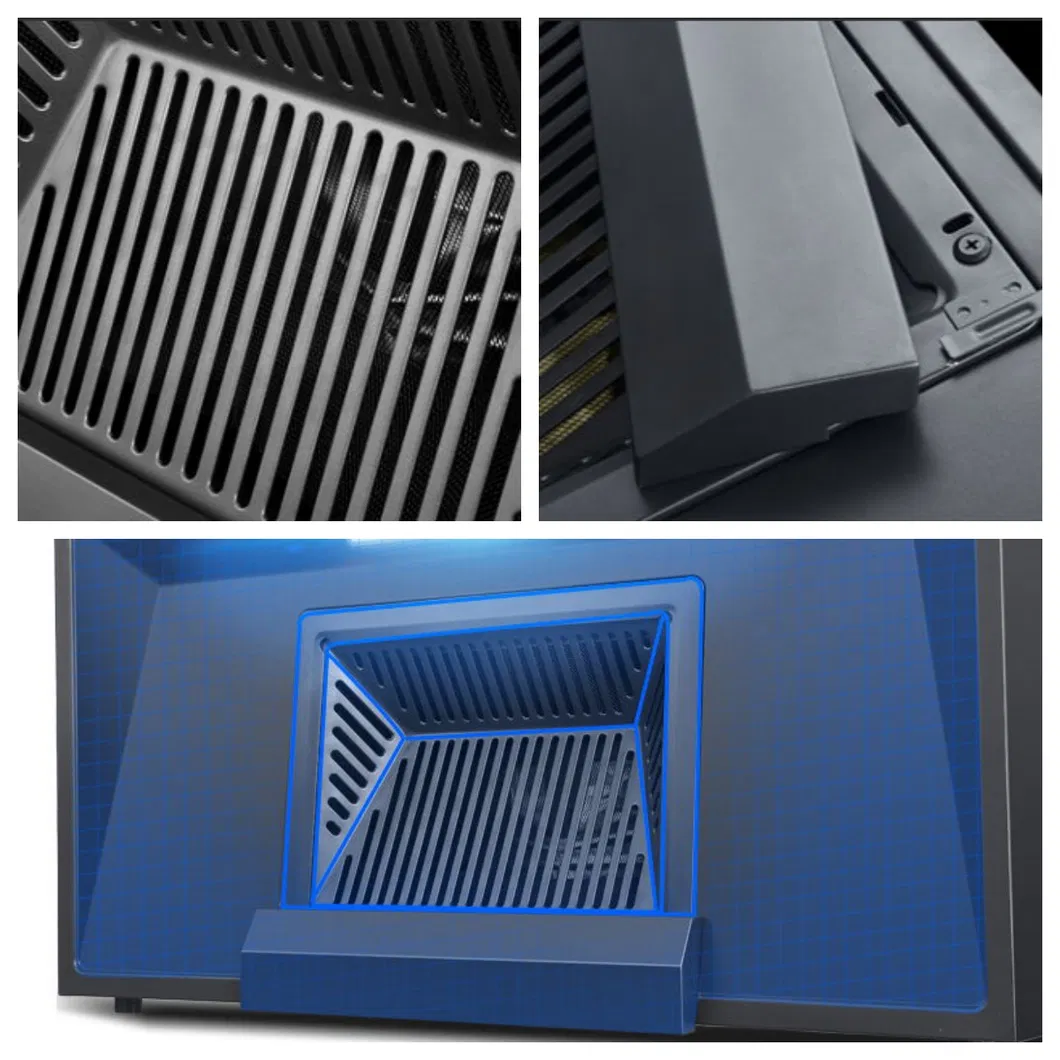

Design Phase 4: Filtration Systems
- Includes two round charcoal filters for efficient air recirculation.
- Sourced from top-tier charcoal filtration suppliers in China.
- Clean carbon filters according to the steps outlined in the instruction manual.

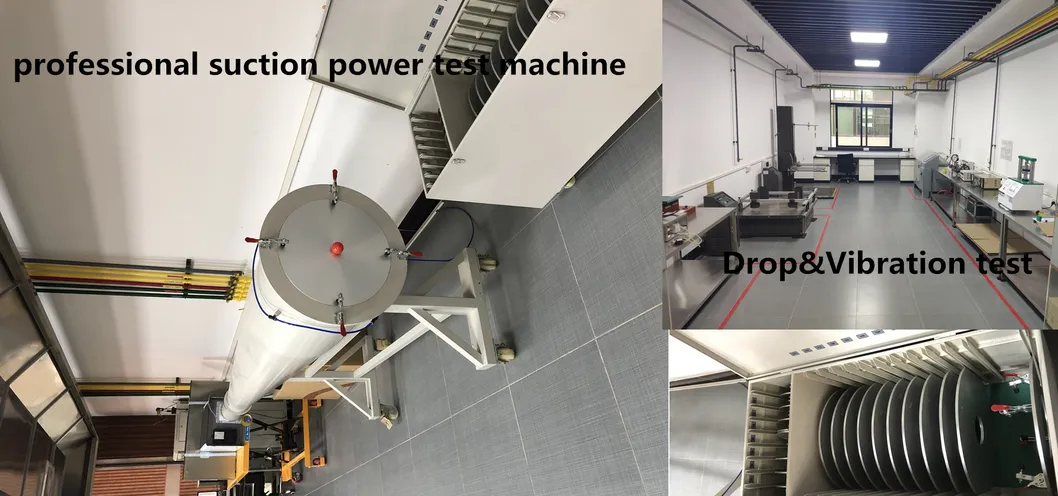

Quality Control & Verification
- Our range hoods comply fully with CE approval standards.
- Every range hood is tested thoroughly on the factory production line before packaging.
- Evaluative product samples can be provided for standard inspection procedures.
- Packed in heavy-duty shipping cartons with built-in protective battens to ensure safe transport.

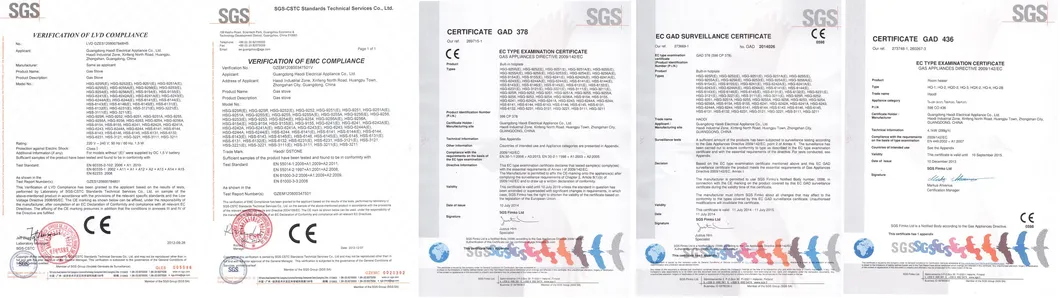

Certificates
Range hood models support optional standard certifications including: CE, SASO, COC, CCC, and CB.
Packing & Shipping Specifications
- Standard electric product samples can be prepared within 1 week.
- Full container orders (20'GP / 40'HQ) can be manufactured and prepared in approximately 25 days.

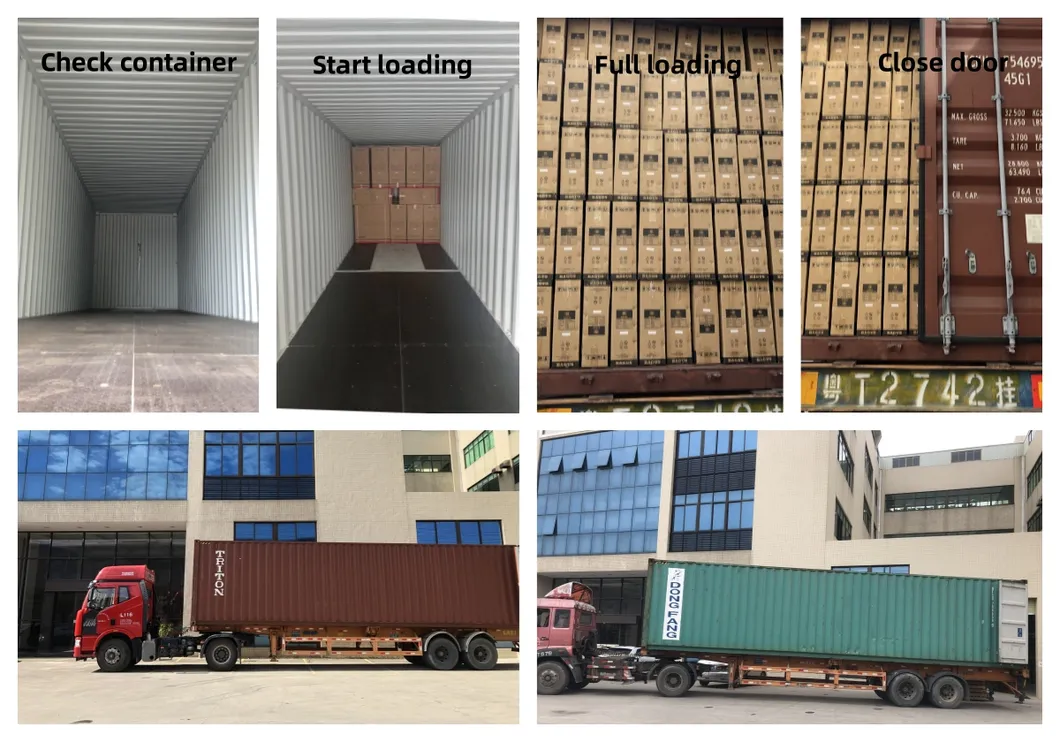

- Professional container loading procedures are followed: loading teams verify container structural integrity and record process photographs before securely packing all available space.
| Model |
Range Hood Dimensions |
| Body Size (mm) |
Packing Size (mm) |
| HCC-43 |
900 × 460 × 670 |
955 * 725 * 500 |
| HCC-35 |
900 * 760 * 290 |
955 * 725 * 500 |
| HCC-26 |
900 * 760 * 290 |
955 * 725 * 500 |
| HCC-34 |
900 * 760 * 290 |
955 * 725 * 500 |
| HCC-23 |
900 * 760 * 290 |
955 * 725 * 500 |
Our Services
- 1-year warranty provided for all finished products.
- The motor components feature a 5-year warranty period.
- 1% - 2% essential spare parts are provided based on order details.
- Full support for OEM and ODM projects.
- CKD (Completely Knocked Down) and SKD (Semi-Knocked Down) shipment options are available.
- Trial/test orders are accommodated.
- Range hood evaluation samples can be dispatched within 7 days.
- Required spare parts during warranty phases are shipped promptly by air.

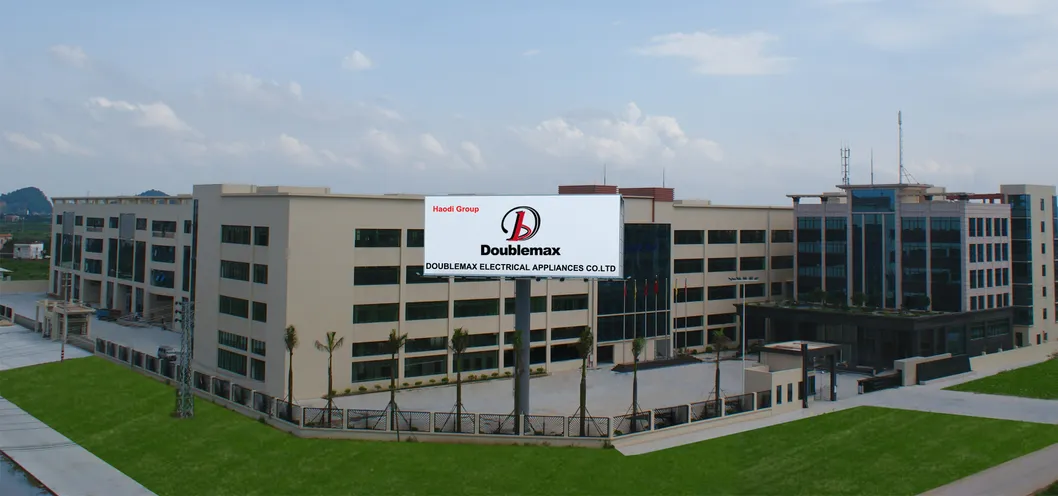

Manufacturing Facilities
The manufacturing base is equipped with hundreds of advanced production machines alongside multiple high-tech automated assembly lines. Facilities include an independent technology research and development center, a modern testing center, and quality laboratories. Metal stamping, molding, spraying, and electronics assembly workshops operate under strict quality control guidelines.
By adhering to strict business principles of mutual benefit, we have built a solid reputation among international clients through quality products, reliable services, and competitive pricing.
Frequently Asked Questions (FAQ)
1
What products are manufactured in your production lines?
We primarily manufacture Built-in Stoves (stainless steel & glass options), Built-in Ceramic Stoves, Built-in Induction Stoves, Range Hoods, Gas Heaters, Gas Water Heaters, and Electric Water Heaters.
2
Are you a factory manufacturer or a trading company?
We are a professional manufacturing factory. We provide comprehensive OEM and ODM product services.
3
Where are your primary export markets located?
Our main target markets span the Middle East, South America, Europe, Russia, Africa, and several other regional territories.
4
Do you have the capacity for independent product research and development?
Yes, our engineering department consists of 10 qualified personnel with full research and development capabilities. We gather feedback, execute continuous product improvements, and launch new models monthly.
5
How can I contact your technical representatives for product consultations?
You can reach out through major business inquiry platforms or submit direct digital inquiries to consult with our representatives.
6
What support services can you provide for project planning?
We provide detailed consultations and custom specifications for wholesalers, developers, purchasing agents, and distributors. Every inquiry is handled systematically, and we operate dedicated channels to resolve any questions or service feedback.
